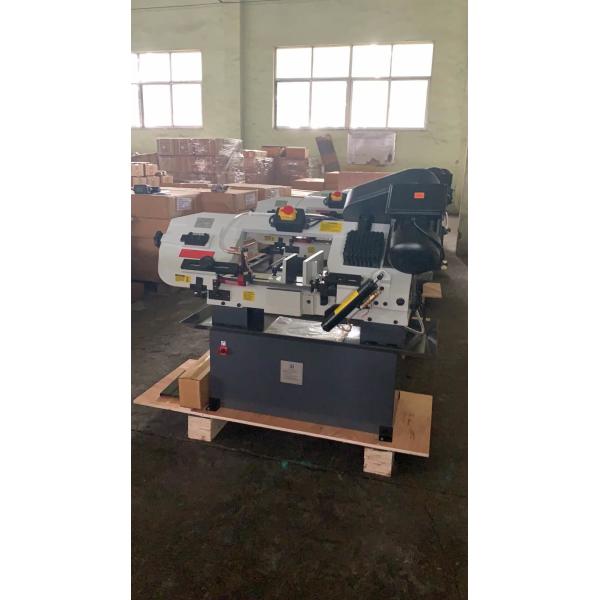

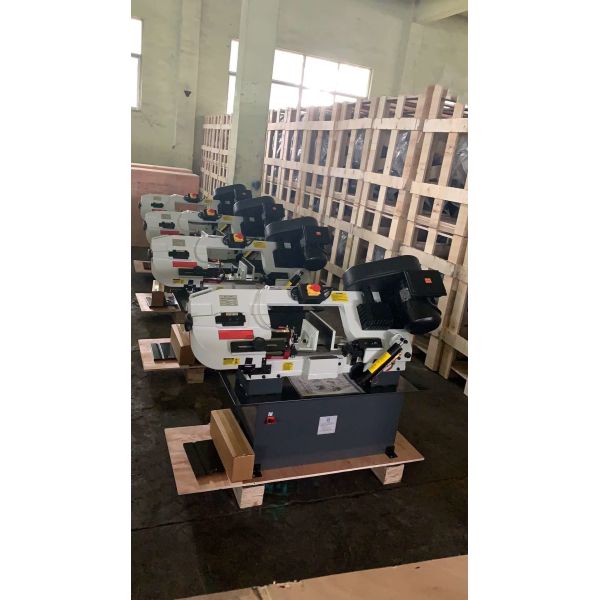

CE Plc Portable Band Saw Machine Bs 712n Automatic

Product Categories

SHEAN (CANGZHOU) CORP LTD

Contact Now

Name: CE Plc Portable Band Saw Machine Bs 712n Automatic
Brand: HEIYAN
Price: 1 USD

Brand Name : HEIYAN

Model Number : BS-712N

Certification : CE

Place of Origin : CHINA

MOQ : 1SET

Price : NEGOTIABLE

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50SETS PER MONTH

Delivery Time : 7-15DAYS

Packaging Details : Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE

belt line speed(m/min) : 40/60/80

Main generator power(kw) : 3

Cooling generator power (kw) : 0.09

Working clamp style : Hydraulic

Saw belt tighten style : Hand

Loading style : Extra roller

Name : portable band saw machine automatic

Contact Now

712N Portable Vertical Metal Cutting Band Saw Machine

Features:

1. Hydraulic clamping vice

2. Swivel on both sides

3. Electric coolant system

4. High-capacity band control by two-speed motor

5. Vertical rotation on bolt with adjustable tapered bearings without backlash

6. Band stretching is obtained by electro-mechanical blade tension with micro switch

Accessories:

Standard accessories:
Blade
Hydraulic clamping vice
Electric coolant system
Optional accessories:
PLC
Service motor with variable speed

Type	BS-712N
Cut capcity W*H (mm)	90° round 178
Cut capcity W*H (mm)	square 178*305
	45° round 127
	square 120*125
Bundle cutting W*H (mm)	Max. 200*90
Bundle cutting W*H (mm)	Min. 100*20
Saw belt size(mm)	3505270.9
belt line speed(m/min)	15-80 frequency control
Main generator power(kw)	2.2
Hydraulic generator power(kw)	0.75
Cooling generator power (kw)	0.09
Working clamp style	Hydraulic
Saw belt tighten style	Hydraulic
Main trasmit structure	Turbine
Loading style	Extra roller
Volume of oil case (L)	60
Volume of water case (L)	40
Max single feeding (mm)	400
Working table height (mm)	650
Weights of machine (kgs)	145/178
Packing dimensions(mm) LMH	15405901150
